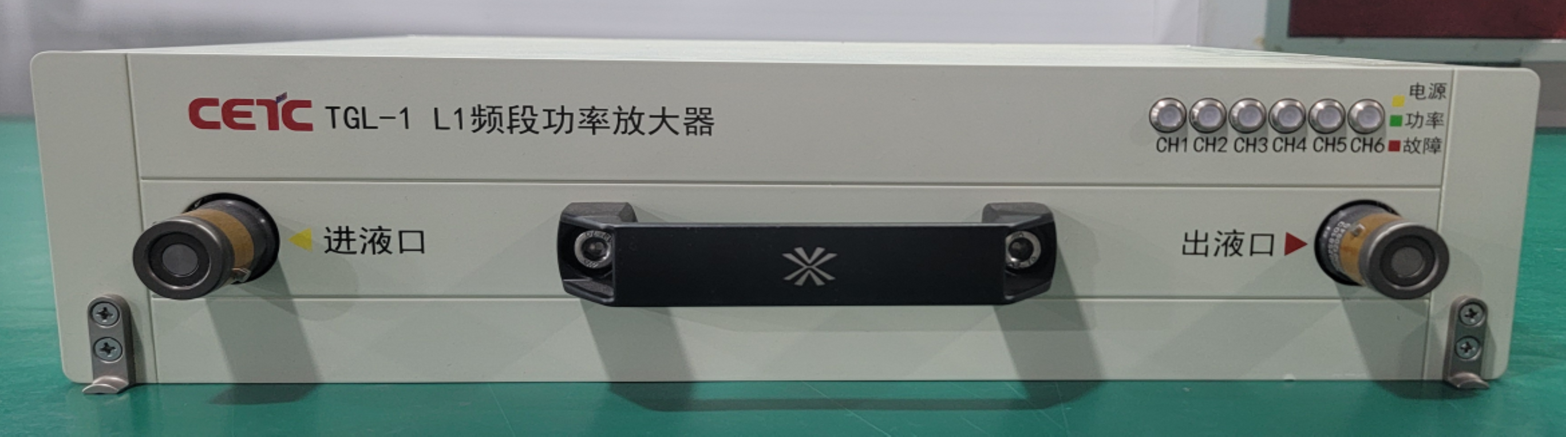

Power amplifier machine (electronic countermeasure single channel field)
Power amplifier machine (electronic countermeasure single channel field)
Features
✓
Wide frequency band up to millimeter wave
✓
CW/pulse signal, customizable output power
✓
High gain, low stray, optional cooling modes
Applications
✓
Single-channel electronic countermeasure transmit system
✓
Electromagnetic environment simulation
✓
Microwave & millimeter wave test equipment
Frequency range: 1-4GHz/2-6GHz/6-18GHz/18-40GHz/92-96GHz
Output power: 100W-1KW (CW), other power specifications can be customized
Signal mode: continuous wave/pulse
Stray: ≤ -60dBc
Gain: ≥ 50dB
Cooling method: forced air cooling/liquid cooling
