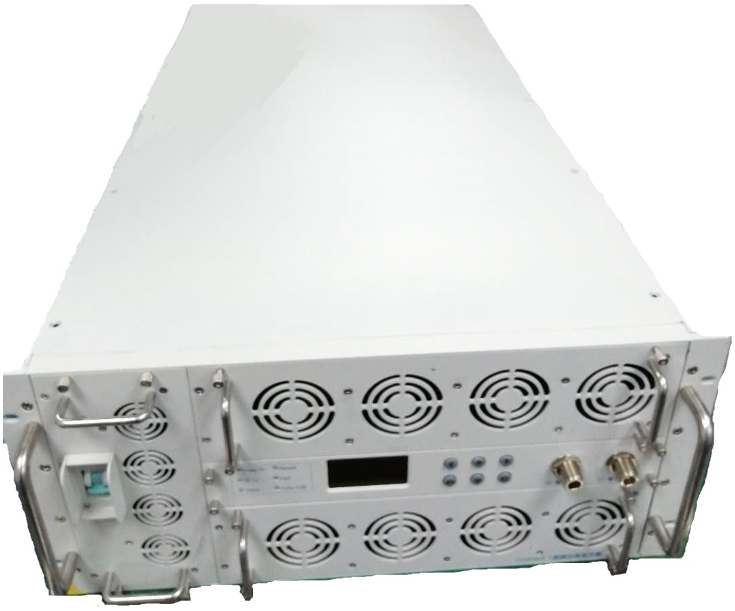

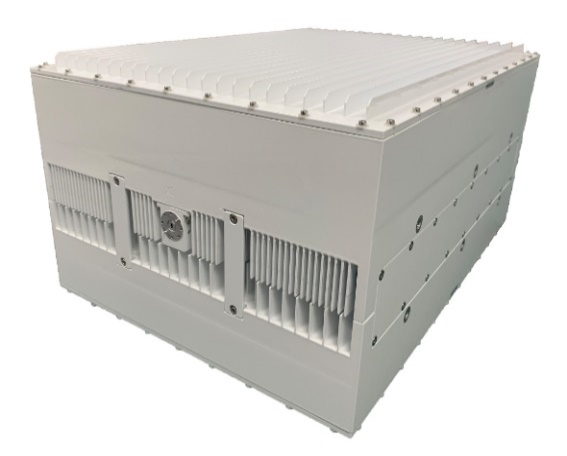

Power amplifier machine (testing field)

Features

✓ Wideband coverage up to 45GHz

✓ Adjustable gain, customizable CW power

✓ Low harmonic & stray, strong load adaptability

✓ Microwave millimeter-wave test system

✓ Electromagnetic compatibility testing

✓ Component performance verification

Frequency range: 1-4GHz/4-8GHz/8-18GHz/18-26.5GHz/

26.5-40GHz/40-45GHz

Output power: 100-2000W (CW), other power specifications can be customized

Gain adjustment range: ≥ 25dB

Harmonic: ≤ -15dBc

Stray: ≤ -65dBc

Output anti adaptation: ≥ 6:1
